EARLY STEARMER EMISSON SYSTEM
Guard ++

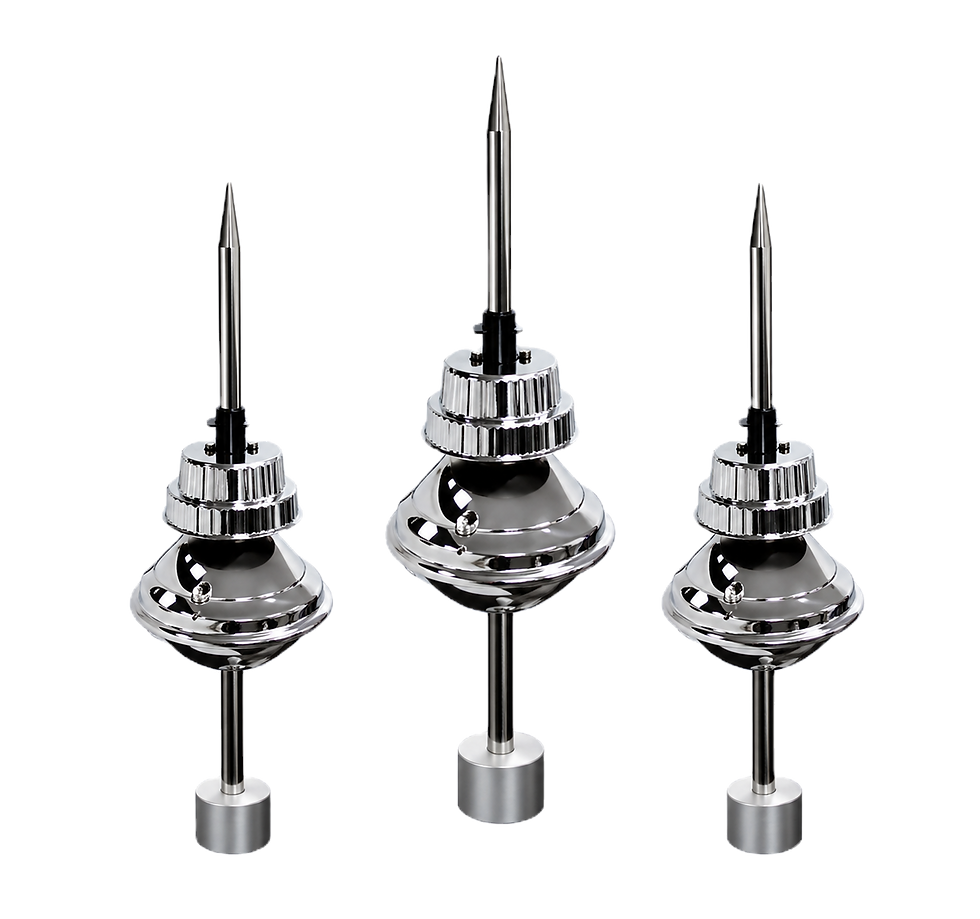

ESE Lightning Arrester
Advanced Early Streamer Emission lightning protection system engineered for superior protection coverage, rapid strike interception, and long-term structural safety.
Extended Protection radius
NF C 17-10 Compliant
Corrosion Resistant build
Advanced Lightning Protection for Modern Infrastructure
PRODUCT OVERVIEW
GUARD++ Lightning Arrester Early Streamer Emission (ESE) systems provide a larger protection radius compared to conventional lightning rods. The system intercepts the lightning strike in mid-air before it strikes any object on the structure and safely conducts the lightning current to the ground via the down-conductor and earthing system.
Just before the lightning strike, GUARD++ senses the rapid change in the ambient electric field and produces high voltage pulses that ionize the air particles around the device, generating an upward streamer that intercepts the downward leader of the lightning strike.
How GUARD ++ Protects Your Structure

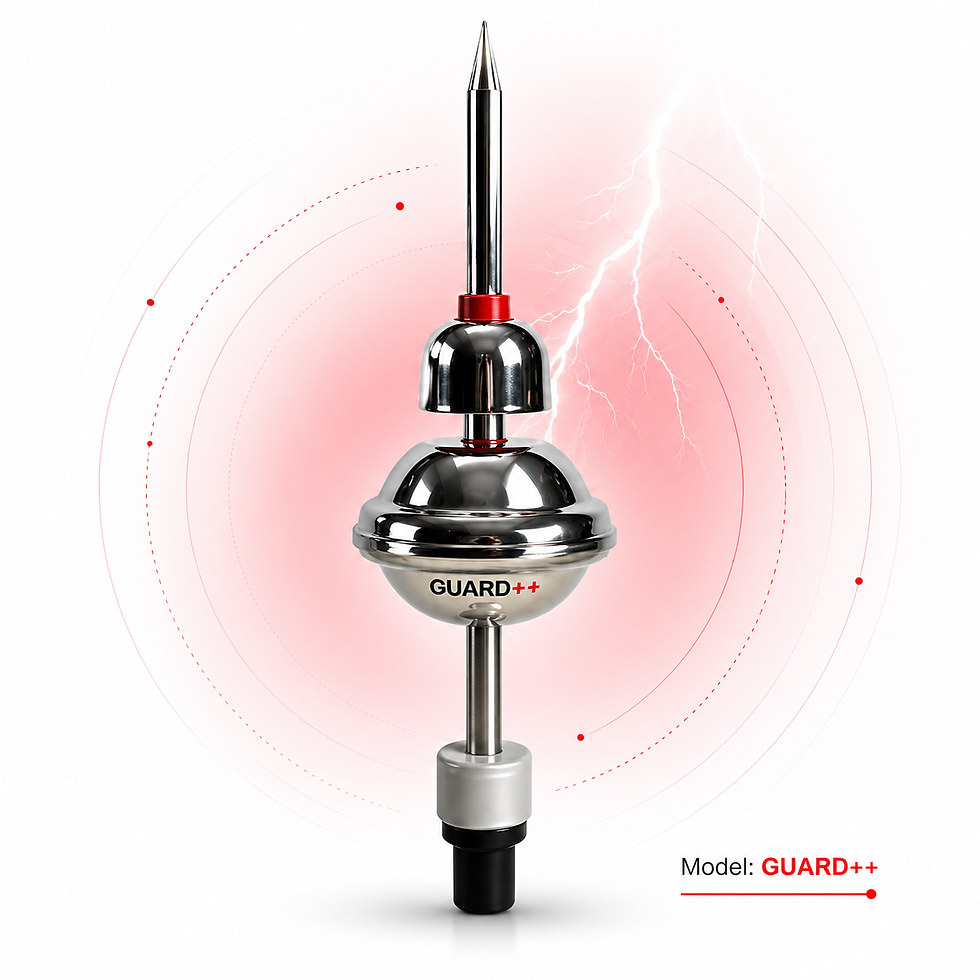

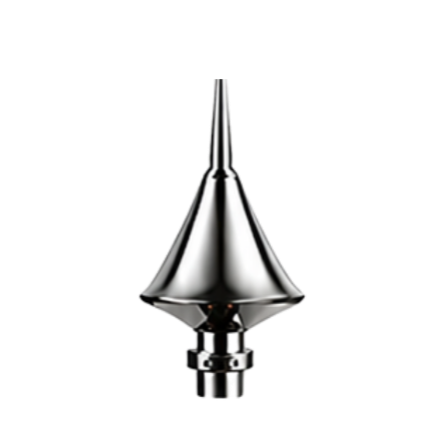

GUARD ++ Ese Terminal
Captures the lightning strike before impact, preventing direct damage to the structure.
Self Stand
Provides a stable and secure base for the lightning protection system.
Metallic Lower Mast
Provides the required elevation for effective strike interception.
Downcondutor Saddle
Safely channels the lightning current downward through the structure.
Lightning Event Counter
Records every lightning discharge event for easy monitoring and inspection
Inspection Pit
Provides convenient access for testing, maintenance, and routine safety checks.
Ground Rods
Safely dissipates lightning energy into the earth, ensuring total protection.
SPECIFICATION & STANDARDS
Full compliance with French Standard NF C17-102
Outer body made of non corrosive XL 304 stainless steel making the system fully resistant to dynamic power surging and effects of acid rain caused by lightning discharge
Capturing rod diameter 25mm
Atmospheric Area Force 5200 kv/m
Lightning Conductor weight 6.2 kg
Different models with various protection radii available to suit the application
LIGHTNING EVENT COUNTER
The lightning event counter is designed to keep a record of all direct lightning strikes on the external lightning protection system. The display (6 digits) allows a direct and comfortable reading of the number of lightning events. It requires no external power supply actions on a lithium battery Suitable for use with both ESE terminals and conventional lightnig protection systems.
SPECIFICATION
Current Sensitivity
3KA nom
(8/20us impulse)
Operating range
3KA min
150KA max
Display
Resettable 6 digit LCD counter
(8mm numerals)
Power source
Lithium battery
10 years life
Dimensions
110mm (w) *80mm (h) * 66.5mm(d)
Mounting
90mm *60mm *M4
Weight
0.2 kg
PROTECTION AREA
H(m)
TG-100
TG-200
TG-300
2
15
25
32
3
23
37
48
4
31
50
65
5
39
62
80
6
40
62
80
8
40
63
80
10
41
63
80
Frequently Asked Questions
Find answers to the most common questions about our Lightning Protection Systems, Arresters, Accessories and Earthing Solutions.
Guard++ Lightning Arrester is an advanced solution designed for reliable lightning interception and superior building protection.
It captures lightning safely and directs the current into a properly designed Lightning Protection System.
It is suitable for industrial, commercial, institutional, and residential buildings.
Yes. Proper earthing accessories are essential for safe performance.
Annual inspection and testing are recommended.
